Pantera P6e, electric helicopter AUD0000-e

Pantera P6 specifications

• Length = 1220mm
• Height = 432mm
• Main rotor diameter = 1423mm (w/600mm blades)
• Tail rotor diameter = 267mm (w/87mm blades)
• Weight = RTF ~3280g (standard servos, 6S5000 pack)
• Propulsion = Pmax 450-720KV
• Fuel = n/a

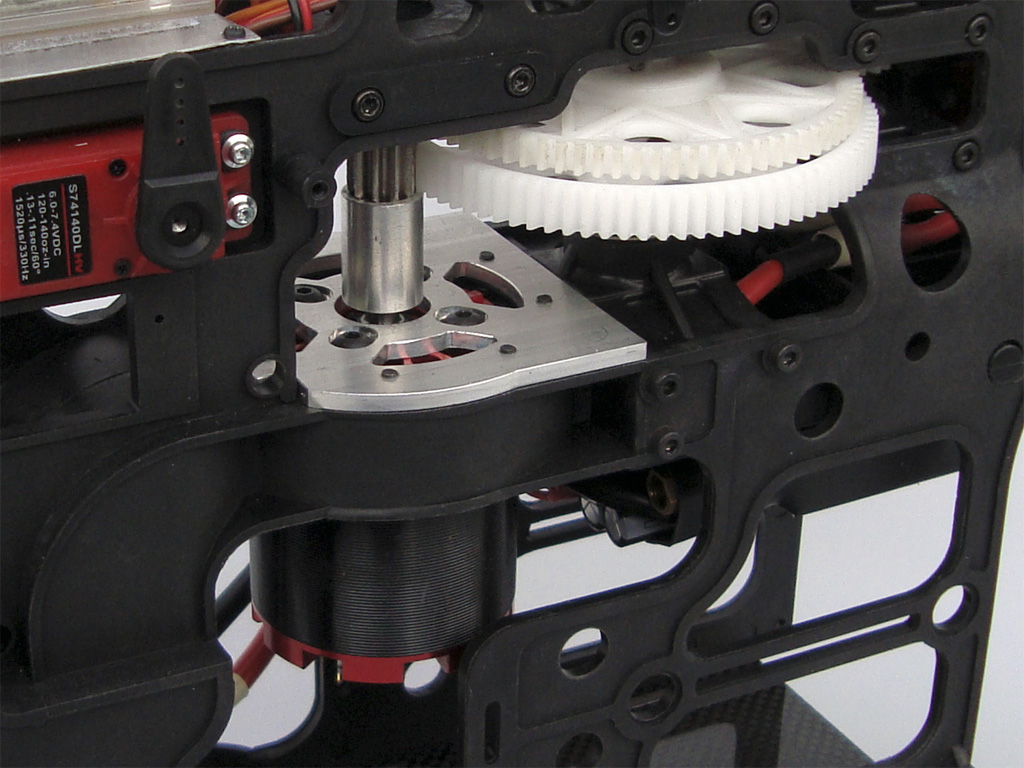

• Gear ratio: 8.7:1 (87T main, 10T pinion)
• Tail ratio = 5.3:1
• Tail drive = belt
• Main rotor blades = 580-620mm
• Tail rotor blades = 87-115mm
• Gyro = single-axis (3-axis FBL, optional)
• Servos = 5 standard (minis are optional)
  • Cyclic (X3) = 255-635oz-in
  • Tail rotor = 70-135oz-in (760ms or 1520ms)
  • Throttle = 90-255oz-in
  • Mixture = 90oz-in
