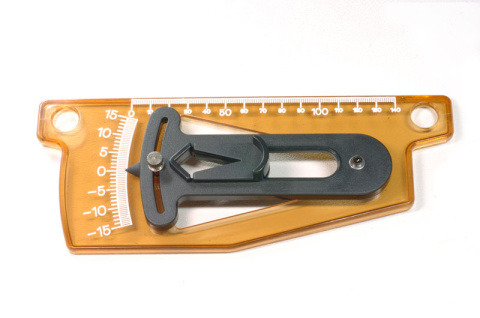

Pitch Gauge AUD0073

Need a quick indication of pitch? This gauge goes from -15° to +15°. Molded of high impact translucent plastic, the spring loaded jaw fits many blade sizes and ships with a protective vinyl pouch.  Here are some setup tips!

Collective pitch:

Install near root of blade, lock the flybar parallel to the tail boom and read the pitch directly off the scale.

• Sport pitch range: -3° low stick, 5.5° hover pitch, and 10.5° high stick
• 3D pitch range: -11° low stick, 0° mid-stick, and 11° high stick (hover at 3/8 and 5/8 stick)

Cyclic Pitch:

• Blades perpendicular to tail boom, measure elevator, or fore/aft cyclic pitch - 6° for smooth flight, +8° for 3D
• Blades parallel to the tail boom, measure aileron, or roll cyclic pitch - 6° for smooth flight, +8° for 3D
